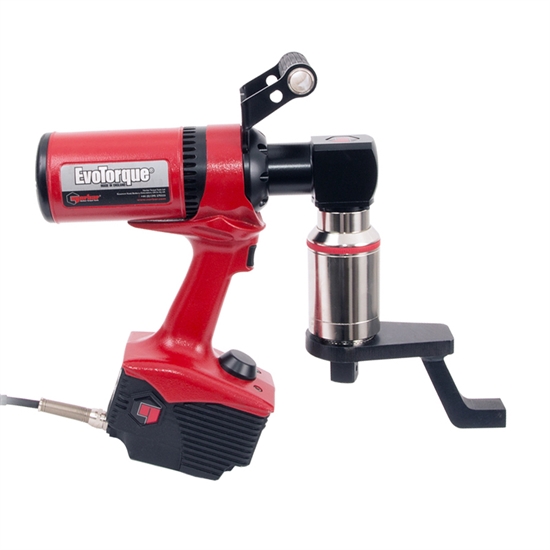

The Right Angle Gearbox enables the benefits of Norbar's electronic torque tools to be brought to a host of applications from which they are currently excluded due to space restrictions.
- Part number:
180231.B06.RA
- EAN Bar Code:
5060207569262
- NATO number:
-
- Accuracy:
±3%
- Operates between:
270.00 -
1350.00
N·m
200.00 -
1000.00
lbf·ft
Compare Products
Please select further products to compare.
- Features
-
Each tool is supplied with a traceable calibration certificate
-
Torque, Torque & Angle, Torque & Angle with Final Torque or Torque Audit Modes
-
'Usage' counter gives the ability to see the amount of times the tool has been used since the last reset
-
"Operation Direction" designed primarily for undoing bolts. When doing sequence tightening, it is now possible to undo an incorrectly tightened bolt without interrupting the sequence
-
2 Stage Tightening gives faster application of a Snug Torque & Angle Target
-
"Turn Angle" option can be used to check if bolts have already been tightened in an assembly process
-
Allows tool integration into third party control systems
-
Maximum Audit Mode target angle increased to 720 degrees
-
Ability to produce and store real time graphs via EvoLog
-
2 different lock levels, lock level 1 as per previous lock, lock level 2 will not allow user to exit the run screen or change the target
-
For more features please see link to sales leaflet under catalogue below
-
Allows more comfortable operation of the EvoTorque2 on vertically bolting applications at chest height and above as the pistol grip is presented correctly to the operator
-
The tool handle can rotate 360° in relation to the Right Angle Gearbox allowing the most comfortable and safest position to be found
- Technical Specifications
-
Length: 464mm
-
Weight: 14.06kg
-
Height: 427mm
-
3/4" Square Drive
-
21 rpm
-
Calibrated to 20% - 100% of tool's maximum capacity
-
Operational targets can be set from 10% of tool capacity
-
110V: 0
