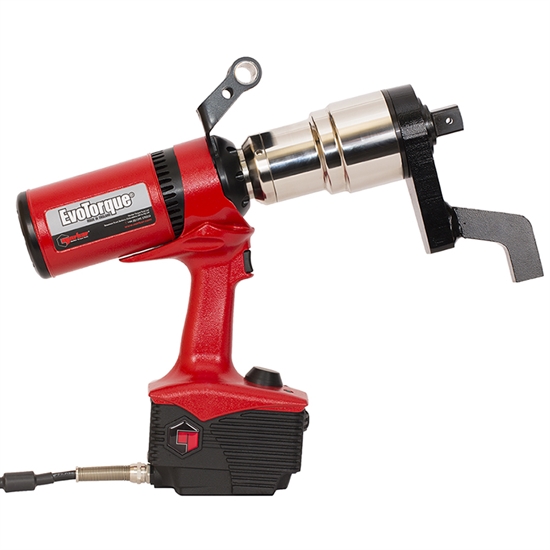

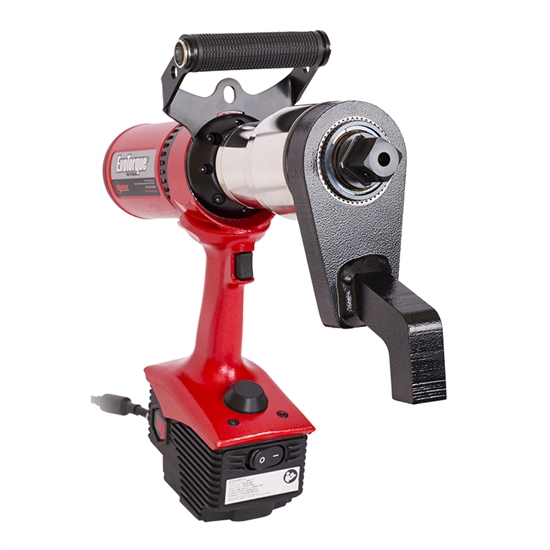

EvoTorque 2 ET2-92-4000-230 1"

EvoTorque 2 ET2-92-4000-230 1"

Part number: 180228.B08
EAN Bar Code: 5060207568012
NATO number: -
Accuracy: ±3%
Operates between: 400.00 - 4000.00 N·m
295.00 - 3000.00 lbf·ft

Compare This Product

Features
- Each tool is supplied with a traceable calibration certificate
- Torque, Torque & Angle, Torque & Angle with Final Torque or Torque Audit Modes
- 'Usage' counter gives the ability to see the amount of times the tool has been used since the last reset
- "Operation Direction" designed primarily for undoing bolts. When doing sequence tightening, it is now possible to undo an incorrectly tightened bolt without interrupting the sequence
- 2 Stage Tightening gives faster application of a Snug Torque & Angle Target
- "Turn Angle" option can be used to check if bolts have already been tightened in an assembly process
- Allows tool integration into third party control systems
- Maximum Audit Mode target angle increased to 720 degrees

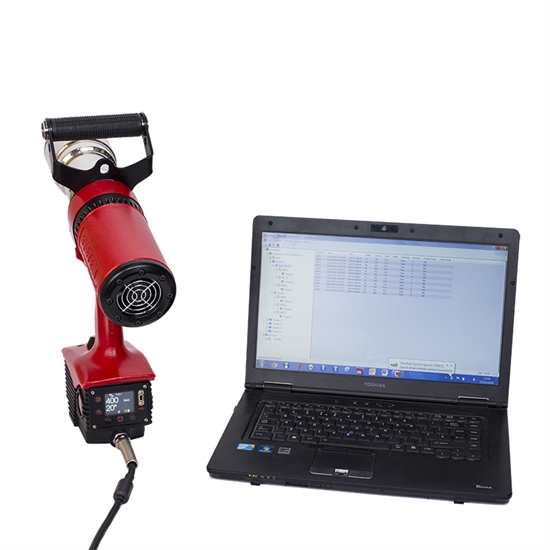

- Ability to produce and store real time graphs via EvoLog
- 2 different lock levels, lock level 1 as per previous lock, lock level 2 will not allow user to exit the run screen or change the target
- For more features please see link to sales leaflet under catalogue below
Technical Specifications
- 1" Square Drive
- 6 rpm
- Tool Weight of 12.85kg
- Calibrated to 20% - 100% of tool's maximum capacity
- Operational targets can be set from 10% of tool capacity
- 230V: 0
