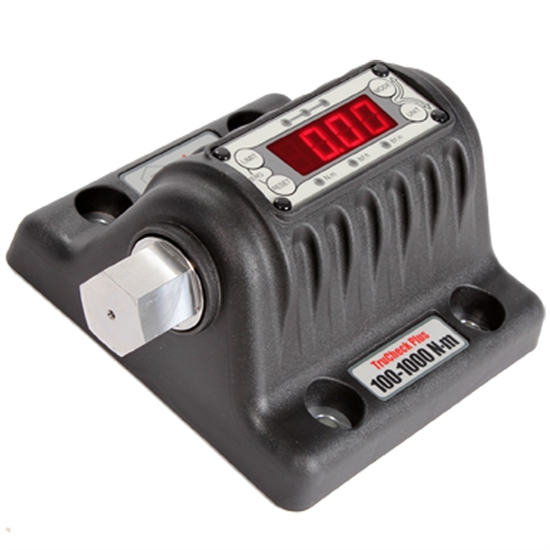

TruCheck Plus 100 - 1000 N.m

TruCheck Plus 1000 N·m

This product is now obsolete, for details of the new, re-engineered model please click here

As some customers require more flexibility than the basic TruCheck model, the 'Plus' adds a comprehensive range of features. With three modes of operation the TruCheck Plus is suitable for click wrenches, dial and electronic wrenches and in 'track' mode will continuously monitor the torque signal.

There are three torque units: N·m, lbf·ft and lbf·in.

TruCheck Plus also has a user selectable 'limit' feature. The operator sets the target torque and tolerance and the instrument will calculate whether the reading is within tolerance and indicate the results by illuminating one of three coloured LEDs: orange = low, green = ok, red = high.

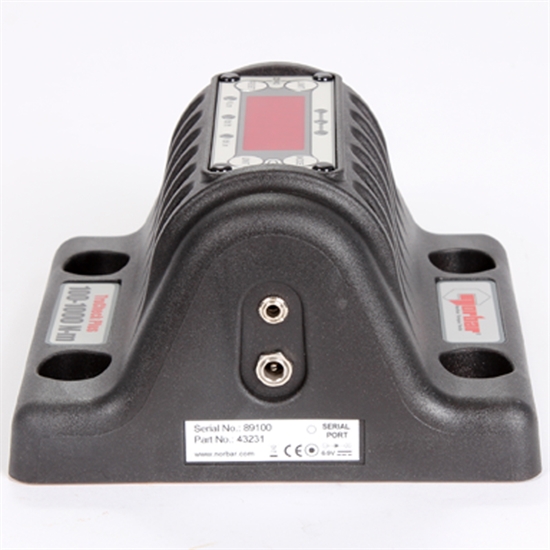

TruCheck Plus has an RS-232 output and comes complete with an RS-232 cable. The reading measurement unit and limit status (Low, OK and High) are output via RS-232.

A Power Tool Test Fixture is available for joint simulation.

Part number: 43231
EAN Bar Code: -
NATO number: -
Accuracy: -
Operates between:
100.00 - 1000.00 N·m
75.00 - 750.00 lbf·ft
885.00 - 8850.00 lbf·in

  • Supplied with a Traceable Calibration Certificate.
  • There are three torque units - N.m, lbf.ft and (always calibrated in N.m).
  • Allows torque tool performance to be monitored and tools kept in peak condition.
  • TruCheck™ Plus allows selection of torque units and modes for 'click' and dial type wrenches.
  • 'Plus' version allows operator to set a target value and tolerance.

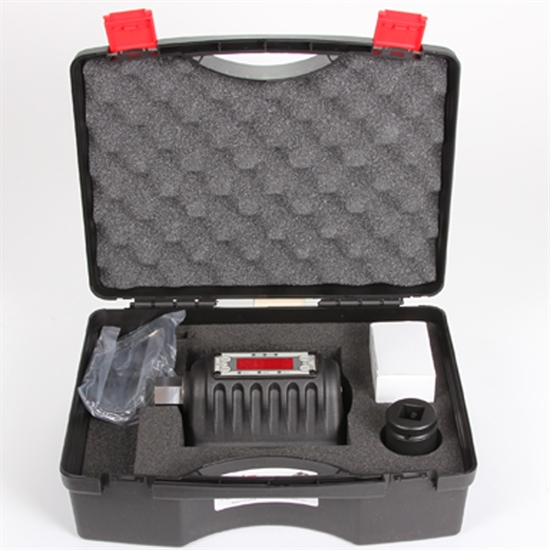

  • Supplied with Auto Ranging Power Supply Unit

  • Estimated Dimensions: 145.5mm (d) x 175mm (w) x 85mm (h)
  • Accuracy: +/-1%, +/-1 digit over the stated operating range.
  • Display: 4 Digit, 7 segment LED, With update rate of twice per second (2Hz)
  • Temp Range - Operating: +5ºC to +40ºC
  • Temp Range - Storage: -20ºC to +70ºC
  • Auto Reset Hold Time: 2 seconds
  • Electromagnetic Compatibility (EMC) Directive: In conformance with EN 61326:1997
  • Weight (for shipping): 4.8 Kg

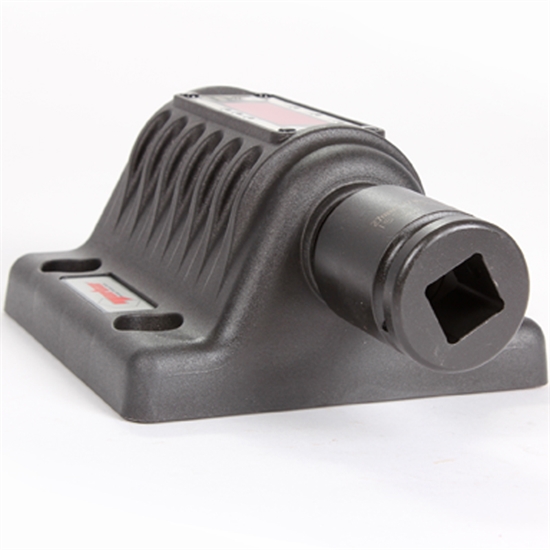

  • Drive Size: 27mm male hexagon. Supplied with 3/4" square drive socket.
  • Optional UKAS accredited calibration is from 10% to 100% of full scale
